solution

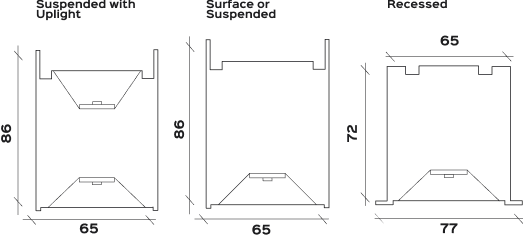

Available in 65mm
cross section | 65
All new ENERGYLINE PROFILE
  • Optimum value with over 20 product improvements
  • Improved user comfort with UGR19 capable microprism option
  • Utilises Accu-Join for light-tight seamless joins
  • Factory finished for rapid and low risk installation
  • Concealed fixings, light-tight end caps
  • Even illumination of ceilings with standard Ceiling Wash indirect lighting
  • Optimised for straight run applications
  • Creative freedom in lighting design with precision optics
  • Designed to look as good in 15 years, as they do today
Low Glare Linear Solution

Microprism Diffuser

Low glare UGR19 capable for workstation lighting

  • Efficacy up to 109 lm/W
  • Homogenous, continuous diffuser
  • IP5X protection
  • Can be combined with Ceiling Wash
Configure Energyline 65Download Brochure
Class Leading Solutions

Satin Diffuser

High vertical illuminance for collaborative spaces

  • Efficacy up to 110 lm/W
  • Homogenous, continuous diffuser
  • IP5X Protection
  • Can be combined with Ceiling Wash
Configure Energyline 65Download Brochure
Light Where You Need It

Optics

Controlled light to illuminate surfaces and architecture

  • Efficacy up to 125 lm/W
  • Optimised for technical performance
  • IP4X Protection
  • Integrated with 0° tilt
  • Can be combined with Ceiling Wash
Wall Wash
Double Wash
35° Optic
60° Optic
90° Optic
Configure Energyline 65Download Brochure

Evenly illuminated ceilings are now the standard with Ceiling Wash indirect lighting

  • Supplied as the standard indirect lighting component
  • Can be combined with direct lighting
  • IP5X Protection
  • Excellent horizontal distribution, ideally suspended 600mm from ceiling
Excellent Ceiling Uniformity

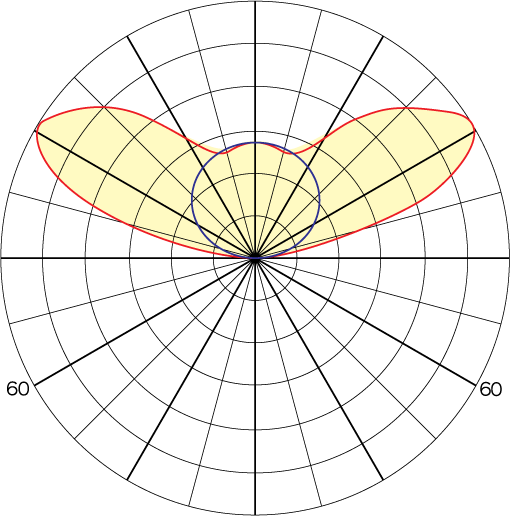

Ceiling Wash

65 Ceiling Wash

ENERGYLINE and Sustainability

The extruded aluminium in Energyline 65 is supplied by McKechnie Aluminium Solutions, who have received the Toitū Carbonreduce certified product recognition for manufacturing aluminium products, typically consisting of 80% recycled aluminium. The company has actively promoted internal recycling and resource responsibility programs and these initiatives have contributed to McKechnie being awarded Enviro-Mark® Diamond level certification and receiving AS/NZS ISO 14001 international certification.
